Water clear lenses

LED Pricelist How to Order

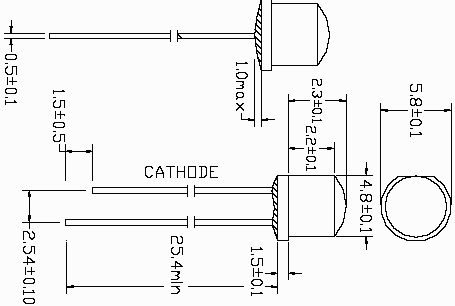

4.8mm Superbright LEDs
Large and Extra Large View Angle
"Straw hat" LED - low head 3.3MM

Order No.	Chip		Wave lenght (nm)	Electro–optical characteristics			2Ø1/2 Half intensity angle (deg)
	Raw mater.	Emited color		Vf(V)		lv@20mA (mcd)
	Raw mater.	Emited color		Typ.	Max.	lv@20mA (mcd)
412PWO4C datasheet	GaInN	Warm White 2870~3710K	---	2.8	3.4	1100~2130	130~ 170°
412PWC datasheet	GaInN	White 6000 ~10000K	---	3.2	3.6	1000~3000	120~ 170°
412LB7C Datasheet	GaInN	Blue	470	3.0	3.6	73~145	130~ 170°
412PG0C Datasheet	GaInN	BlueGreen	500~510	3.0	3.6	200~390	130~ 170°
412PR2C Datasheet Hewlett Packard Very long life	GaAlInP	Super Red	618~624	2.0	2.4	102~280	130~ 170°
412MR2C Datasheet	GaAlInP	Super Red	618~624	2.0	2.4	102~200	130~ 170°
412HR3C Datasheet	GaAlInP	Red Hi.Eff	625~635nm	2.0	2.4	102~280	130~ 170°
LED Pricelist 4.8MM LED, Large and Extra Large View Angle
